AMC Tester


An automated software tool for testing the hardware management software in Module Management Controllers (MMC) for AMCs.

The AMC Tester is an automated test suite for testing the hardware-management software implementation in Module Management Controllers (MMC) and Carrier Managers essential for MMCs. It is designed for AMC manufacturers and system integrators, who wish to reduce the time and resources spent on AMC testing, during the development and regression-testing of building blocks or during system integration. The tester also helps meet interoperability and certification requirements of their systems for compliance with the AMC certification suite.

ATCA Tester Software Tool

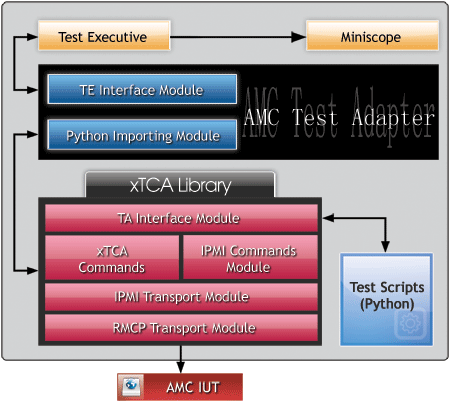

AMC Tester Architecture

Benefits

By checking the compatibility of Module Management Controllers and Carrier Manager with respect to AMC® system management requirements, independently or simultaneously, AMC Tester enables you to:
Increase interoperability of building-blocks

Decrease development & integration time
Future Versions
Future releases of the software will include:
  • Optional and negative test cases
  • Test Batch Creation


Features in Release v1.1.0
  • Windows-based GUI for easy operation
  • AMCs can be tested both on ATCA and MicroTCA Shelves
  • More than 100 Test scenarios based on
    • AMC™ Interoperability
    • Workshops scenarios
    • PICMG3.0 R2.0
    • MTCA.0 R1.0
    • AMC.0 R2.0
    • IPMI 1.5
  • Test Categories
    • Carrier Manager
    • MMC Tests
    • Shelf Tests
  • Useful for testing Module Management Controller and Carrier Manager
  • Error level mapped to the specification requirements

    Specification Requirement Error Level when Requirement is not met
    “Shall” Error
    “Should” Warning
    “May” Info
  • Each test case maps to one PICMG specification AMC.0 requirement
  • Stop or Continue on Error/Warning/Info
  • Fully Editable Test scripts
  • Test scripts available in source code form
  • New tests may be developed by user
  • Complete Decode of packets sent or received during the test run
  • Interactive (Operator-driven) and Automatic tests
  • Test reports in HTML format with target Device information
  • Test environment may be saved for post-test analysis
  • Tests may be repeated for a desired number of iterations
  • Tests may be scheduled for future execution
Windows® XP and Windows® Vista™ (both 32-bit and 64-bit)compatible

Download the AMC Tester Datasheet
